Platinum Serial Optical Auto Top off System(Ato) with Smart SPT Algorithm and Beep Alarm(Mt-200)
Platinum Serial Optical Auto Top off System(Ato) with Smart SPT Algorithm and Beep Alarm(Mt-200)
Save an additional 10% with a subscription below
Couldn't load pickup availability

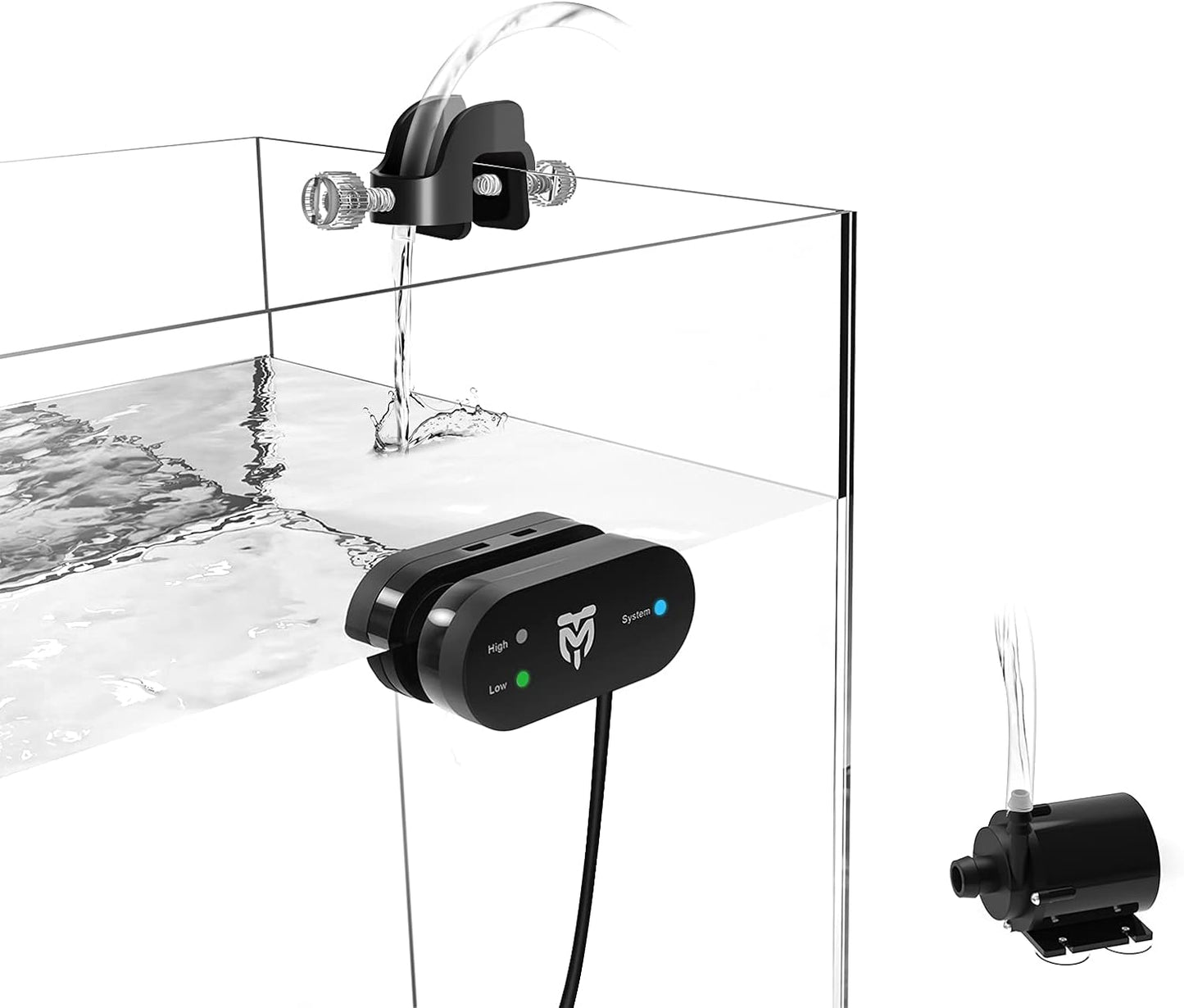

- Compact size. The dual optical sensors system monitors your tank water levels closely for over-fills. When the sensor sees water level at "LOW" position, it starts filling the tank immediately. The “HIGH" sensor provides real-time protection against over-fills. The platinum model uses advanced external optical which can detect the water level through the glass wall on the outside. There are no more loose cables inside the tank.
- Smart algorithms. AFT (Anti-fluctuation Technology) and SPT (Single Pumping Time) working together in tandem to ensure the pump works in real-time to add the right amount of water. At the same time, SPT and QST working together to prevent overfill and dry run. Having these features, our pumps will last longer
- Built-in LED indicator, smart button and alarm buzzer. equipped with a smart button, you can pause the ATO's function temporarily when you perform maintenance on your tank. 3 different LED colors to indicate its working status. When errors happen, buzzer sets off alarms to remind you.

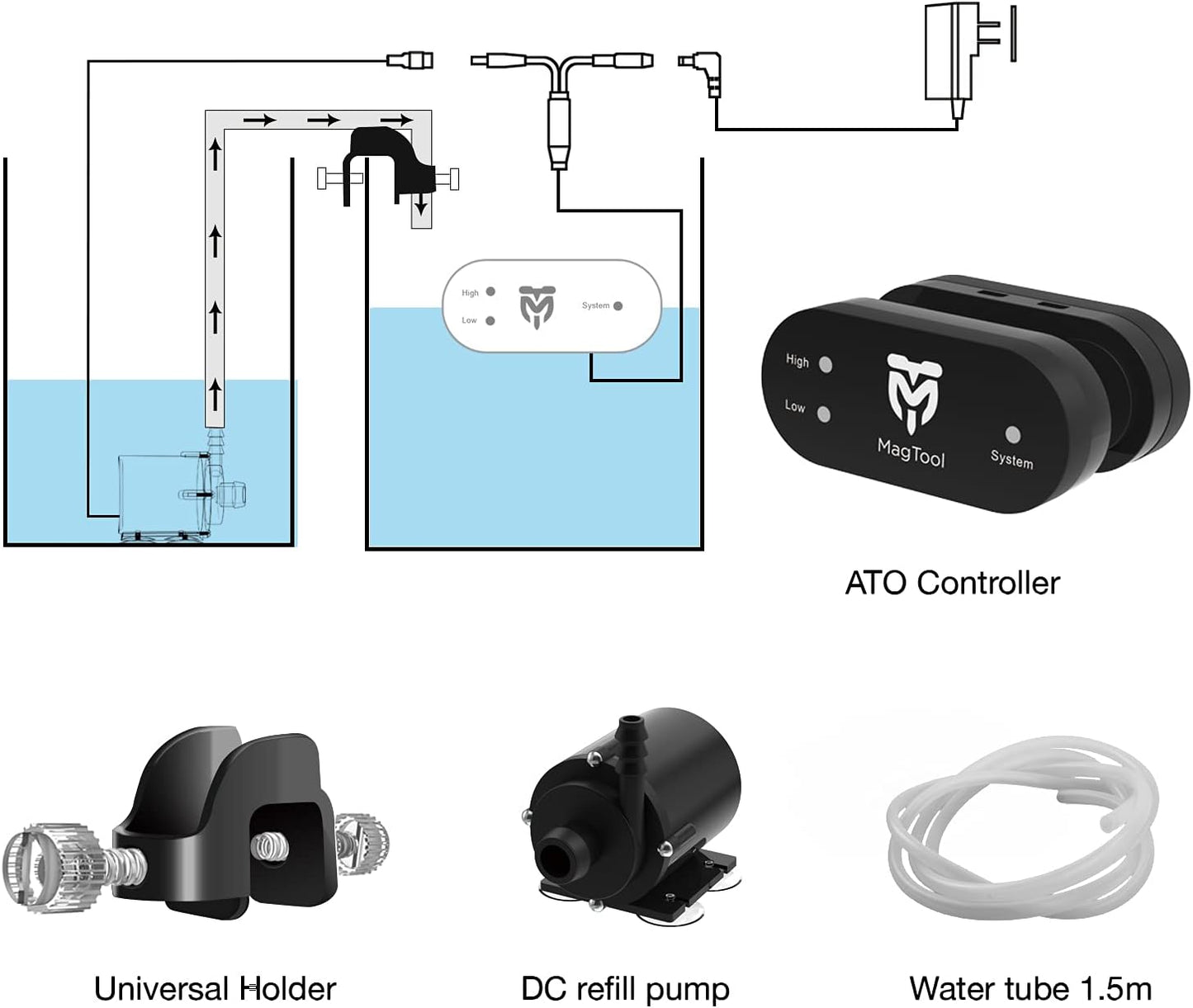

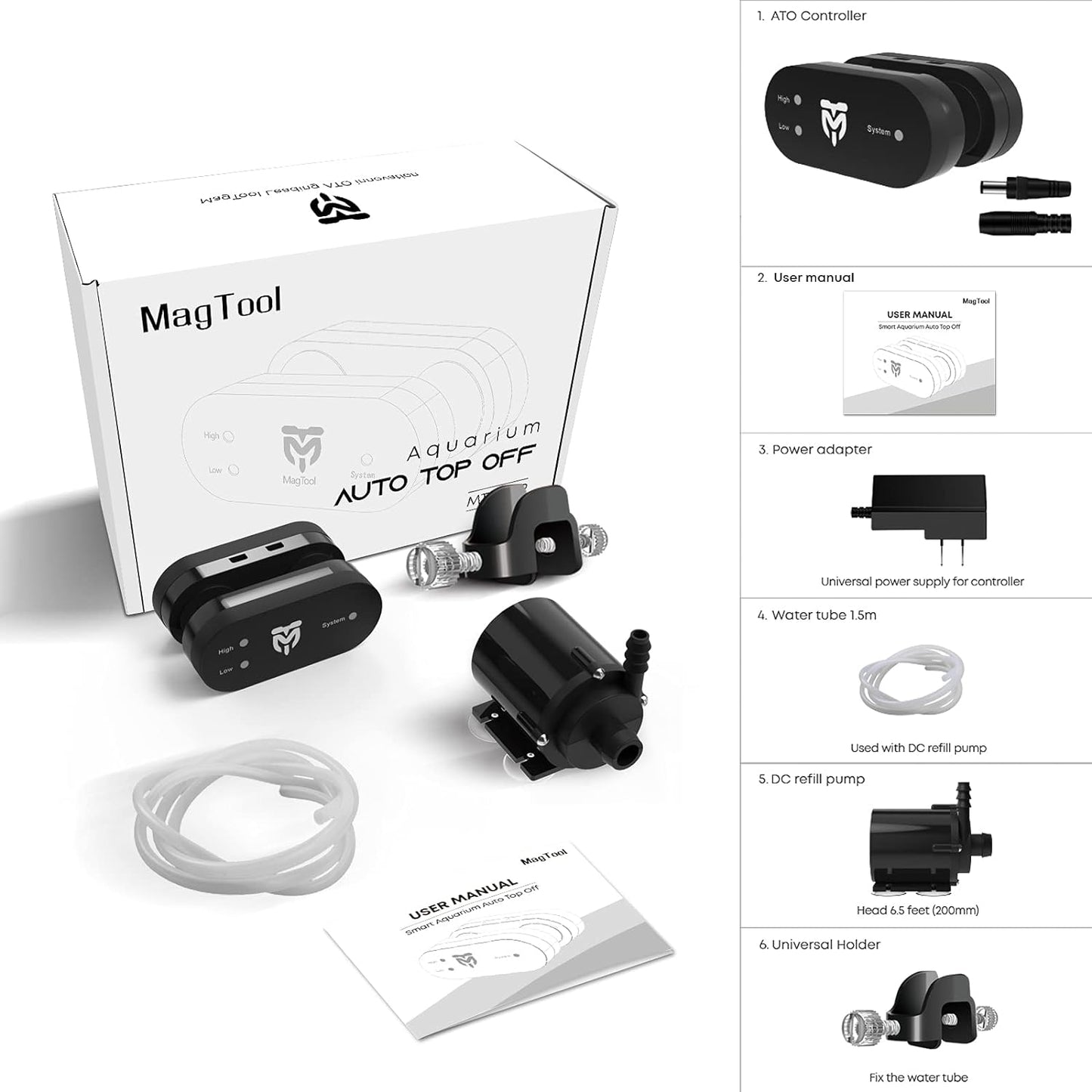

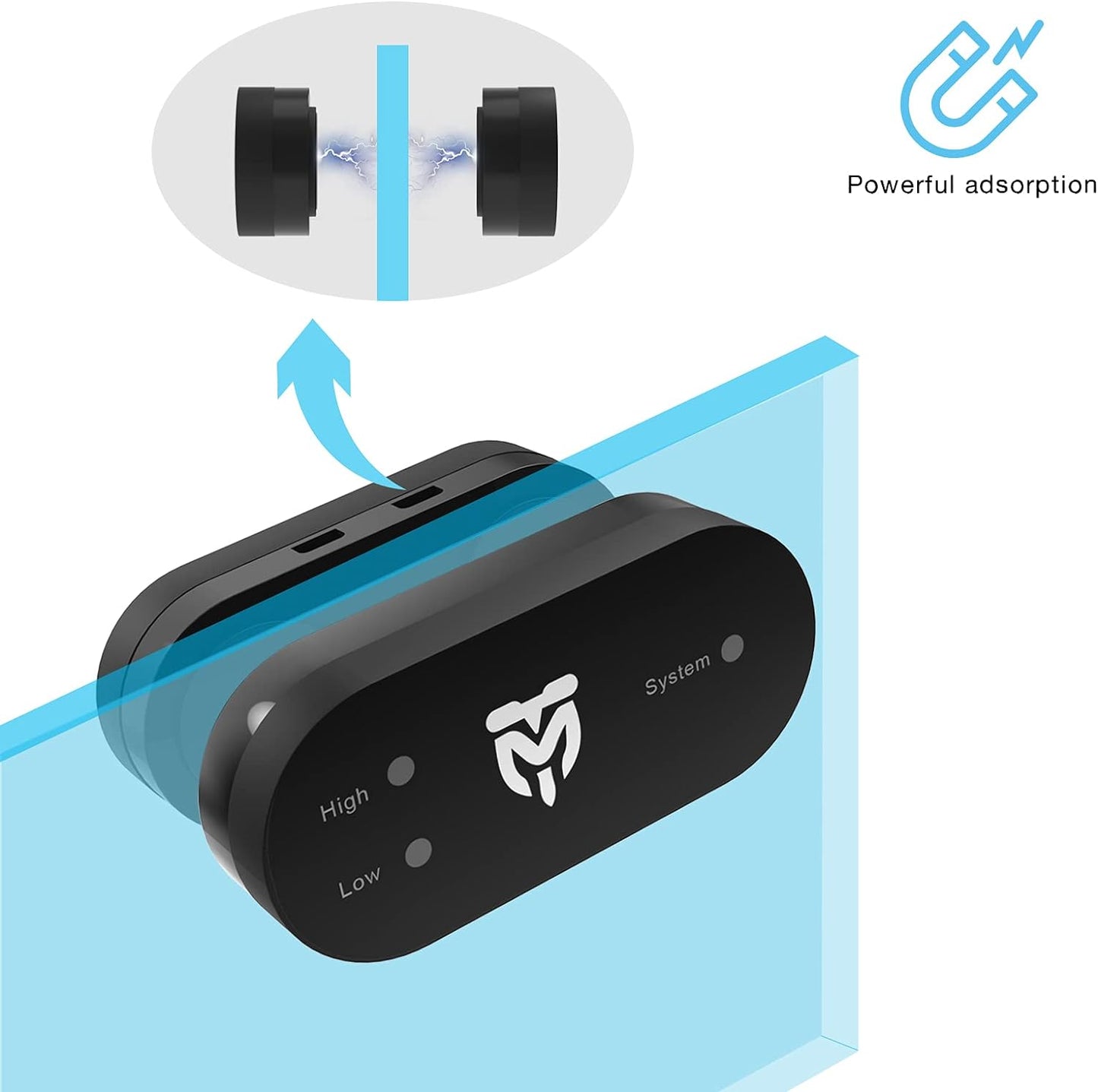

- Accessories are included. Powerful magnet provides strong suction support even on 15mm thick glass wall. Hose holder allows you easily secure the tubing. Powerful 70gph water pump can lift water up to 2.5 M high. Device is easy to use. After finishing device initialization, you can forget about it.
- Attention! The optical sensor ONLY works on transparent glasses. If your tank is not transparent, you need to choose our basic model ATO-360. It is designed for both rimless and rimed tank. The device’s overall width is 1.2 inches long. The target water lever is between "LOW" and "HIGH" positions, so the target line must be 0.4 - 0.6 inches from the edge of the tank.
Product Description
What's the difference between the platinum series and the basic series MT-360P?
Included are the same smart features - AFT, SPT, QTS algorithm in the basic series. The platinum model uses advanced external optical which can detect the water level through the glass wall on the outside. There are no more loose cables inside the tank. What is more is that the platinum model has operation button. One can choose PAUSE or INITIALIZE. A built-in buzzer will alarm you when there is something wrong with the device.
SPECIFICATION
Power : AC 100-240V/50-60 Hz input, DC 12V/1A output.
Power cable length: 6ft(180 cm)
Sensor precision: 1mm
Pump head: 8.2 feet (250 cm)
Pump flowrate: 74 gph (280 lph) Max.
Max mounting thickness : 15mm
Length of cable between Sensor and Controller: 6 feet (150 cm)
Tubing: 6feet(180cm), 7mm inner diameter.
Dual external optical sensors monitor your water level constantly to ensures the water level is within your desire level
LOW Sensor:
- Detects water level. When the water level is below the “LOW" level, it starts filling process.
HIGH Sensor:
- Calculating the SPT time. Using the SPT algorithm, the pump will not fill the water beyond the "HIGH" position.
- Stopping water from continuous filling once the water level reach "MID", preventing overfill;

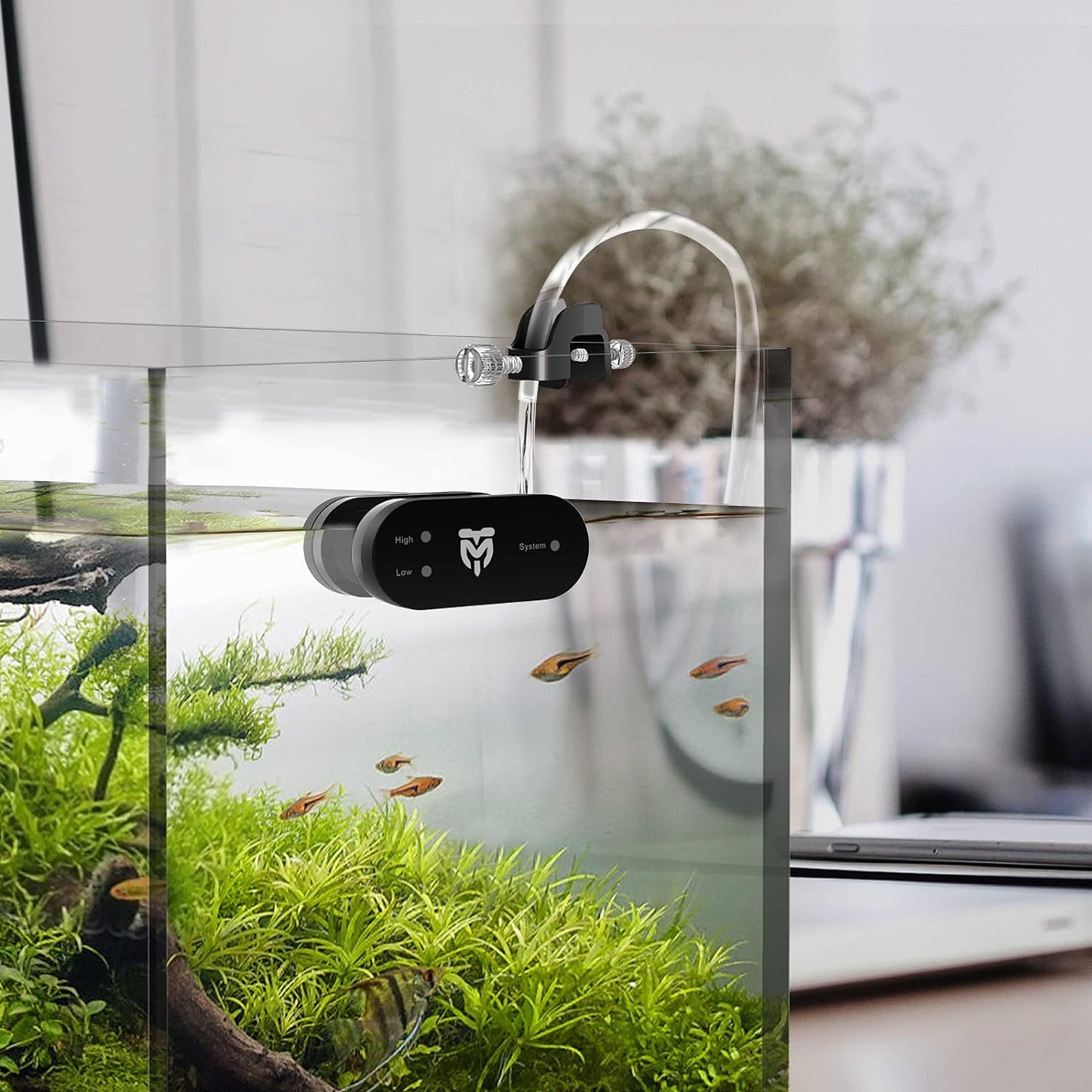

Both optical sensors are to be mounted outside your tank. No more cables across the glass wall or inside your tank. You get tidy, beautiful and uncluttered view.
Smart QST v2.0, SPT and AFT All-In-One works better and safer!
Our new ATO is different from the traditional ATO, where it starts refilling when the water level is below the LOW position and stops when the water level reaches HIGH. Our MT-200 device incorporates ETFT, AFT algorithms and QTS v2.0 (upgraded) to provide precise refilling and prevent dry run.
| SPT (Single pumping time) The ATO recognizes the tank size by timing how long it takes to fill the water from “LOW” to “HIGH” position. That time is called the SPT (Single pumping time). Under normal refilling, the device fills the water to the LOW position and continues until the water level reaches above “LOW” but never goes above “HIGH”. Precisely keep the water between the LOW and the HIGH positions. This unique feature allows extra time of rest between refills, therefore it increases the product’s life span. | AFT (Anti-fluctuation Technology) Most ATOs in the market start and stop the water pump too quickly due to the water level fluctuation caused by many factors, such as feeding, livestock, etc. The frequent start and stop will shorten the pump’s life span and efficiency. Our smart MT-200 uses AFT to identify and recognize these false scenarios. it only starts the pumps when the level is truly low. | QST (Quick Security Technology) v2.0 The controller uses QST for real-time protection against overfilling and flooding. The controller will give a visual alert and stop the pump immediately when it senses a refilling time takes more than 6 times longer than the ETFT. QST can detect sensor malfunction or empty reservoir. In version 2.0 we incorporate ETFT feature and not relying on first filling time from version 1. Our ATO’s are far safer. Flooding barely happens when following the instructions carefully. |
Built-in colorful LED indicator, multi-function button, and alarm buzzer.
MT-200 ATO equipped with a smart button, you can pause the ATO's function temporarily when you perform maintenance on your tank. 3 different LED colors to indicate its working status. When errors happen, buzzer sets off alarms to remind you.

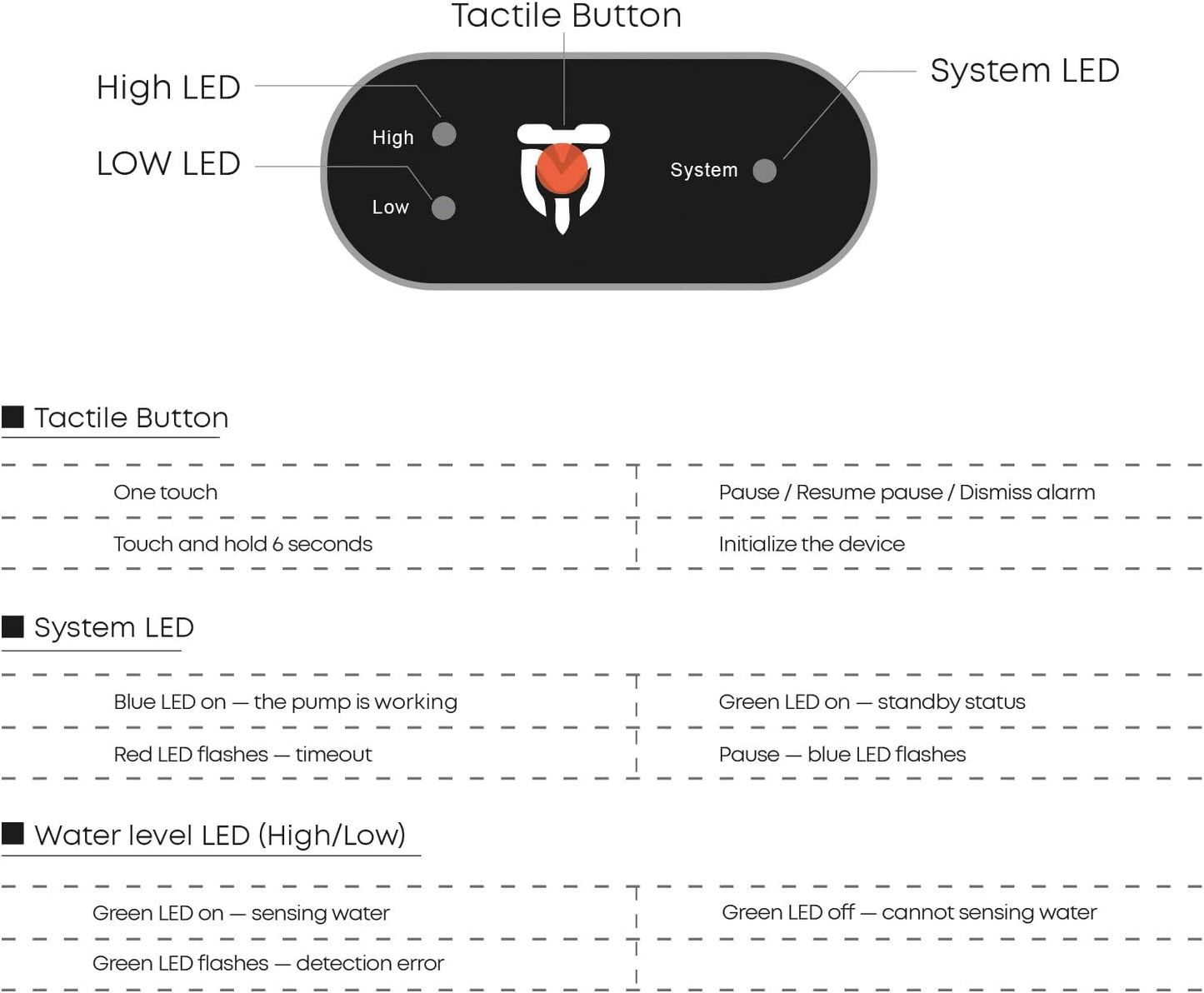

Smart button
- One touch: Pause/Resume pause/ dismiss alarm
- ouch and hold 5 seconds: Initialize device (You will hear a "Beeping" sound)
LED indicators
- System LED solid green: Stand by
- System LED solid blue: pump is working
- System LED Flashing blue: pause
- System LED flashing red (buzzing at the same time): Error! (Could be refilling time out/ pump broken / reservoir empty).
- Sensor LED flash: detecting error

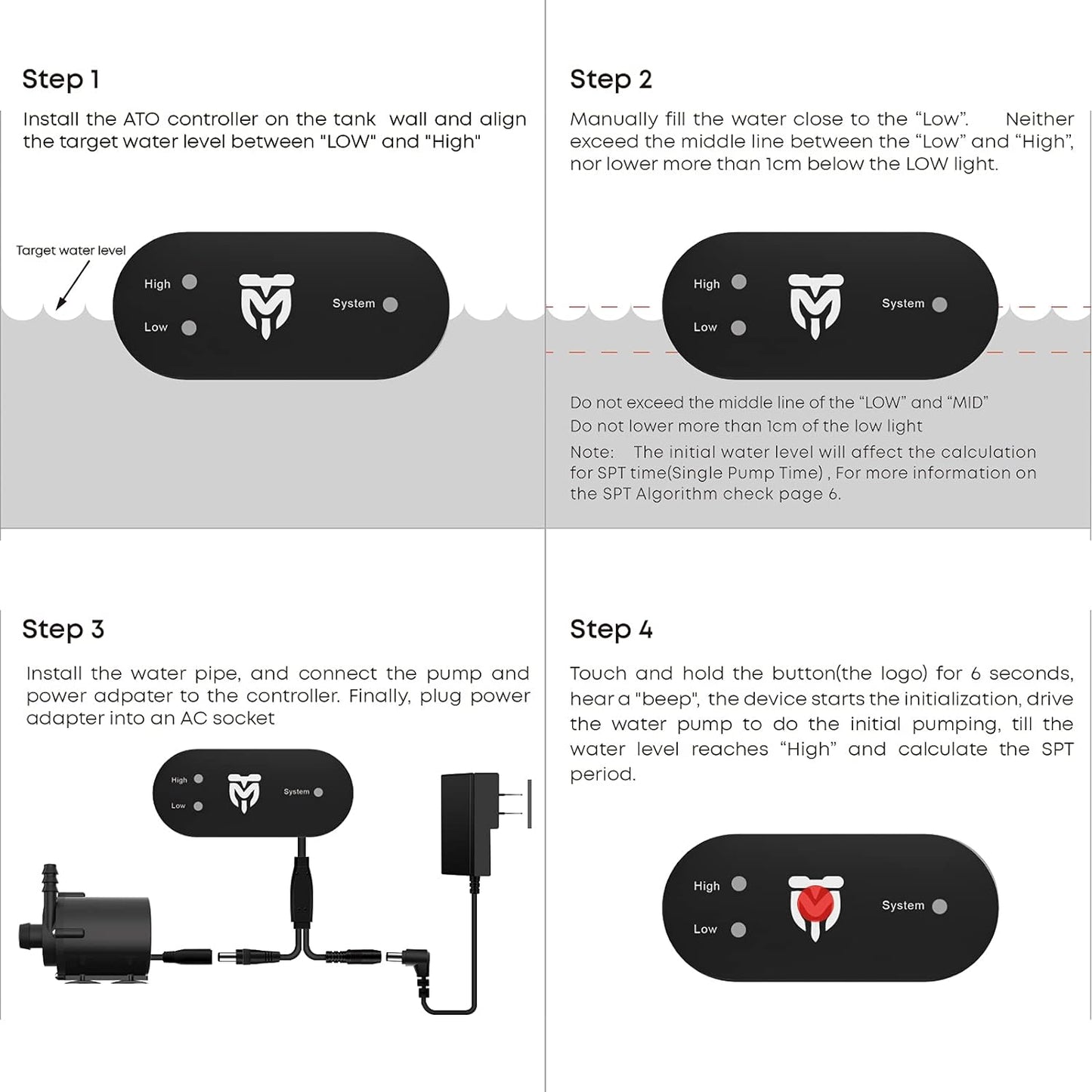

Installation
Attention:
External optical ONLY suitable for transparent tanks. If you install the device in rimed tank, the target water lever will have 0.4-0.6 inch below top.
Q&A:
When does the controller starts to fill the tank?
When the water level is below the “LOW” sensor position
During water pumping, when will the pump stop filling water ?
The controller stops the pump under 3 conditions:
- Water reaches the LOW position and continues until 1 SPT. The perfect working condition.
- Water level reach up to HIGH sensor position, anti-over-fill mechanism stops the pump.
- Water refiling time reaches up to 3 SPT. Pump stops to avoid dry run, or over-filling accident caused by sensor malfunction.
How to stop the alarm buzzer ?
You can touch the tactile button to stop the alarm. Then you need to resolve the problem. The water reservoir is empty, or the pump is malfunctioning
Why should I initialize the device when I change the tank ?
The device will calculate the SPT (Single pumping time) after it is initialized. Different tank sizes have different SPT. If the SPT is not correct, will cause mistake alarm or water overfill. You MUST reinitialize the device when you move the ATO to a different tank!
